AIKO-Axxx-MDE72Dw
Standard
STELLAR 3N+72
Use:
Ground-mounted power plants
/Floating

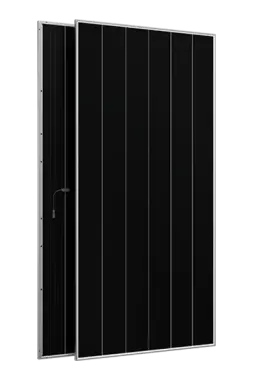

Module Aiko Bifacial 72 cells Monocrystalline/N-type/xBC
| Reference | Prod. start | Prod. end |
|---|---|---|
| AIKO-A665-MDE72Dw | 2026/01 | 2027/04 |
| AIKO-A670-MDE72Dw | 2027/01 | 2028/01 |
Documentation
General documents
Certificates
ECS certificates / Carbon footprint
Request for information on ECS/Carbon Footprint
Request a certificate| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 2382x1134x30 mm |
| Weight (kg) | 32,20 |
| Technology | Monocrystalline/N-type/xBC |
| Number of cells | 72 |
| Glass type | 2 mm x 2 |
| Rear side | Glass White |
| Frame | Aluminum grey |
| Connectors | MC4 or equivalent |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | 1400mm |
| Characteristics | 665 W | 670 W | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield (%) | 24.62 | 24.80 | |||||||
| Electrical Specification (STC) | |||||||||
| Vmp STC (V) | 45.6 | 45.7 | |||||||
| Imp STC (A) | 14.59 | 14.67 | |||||||
| Voc STC (V) | 54.4 | 54.6 | |||||||
| Isc STC (A) | 15.24 | 15.3 | |||||||
| Temperature specifications | |||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | |||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.26 | ||||||||
| Temperature Coefficient of Isc (%/°C) | 0.05 | ||||||||
| Temperature Coefficient of Voc (%/°C) | -0.22 | ||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 36 |
| Modules per container | 720 |
| Pallets per container | 20 |
| Packaging box length (mm) | 2395 |
| Packaging box width (mm) | 1135 |
| Packaging box height (mm) | 1265 |
| Packaging box weight (kg) | 1204 |
| Modules conditioning | Vertical |
Aiko
View more
Founded in 2009, AIKO Solar is a manufacturer of photovoltaic modules classified "Tier 1" by Bloomberg.
AIKO was the first to master the N-type ABC technology (All Back Contact having the highest theoretical conversion efficiency of monocrystalline silicon). They were also first to achieve GW scale mass production of N-type BC cells and modules. This is thanks to over 400 million dollar R&D Funding over the past three years and over a thousand accorded patents.
For over 14 years in buisness, Aiko boasts over 120 GW of cumulative shipments of photovoltaic cells and modules.Aiko also reached record sales in various overseas markets, ranked 1st in sales volume in South Korea and India.
