GCL-NT10R/72GDF
Standard
Use:
Ground-mounted power plants
/Agrivoltaics
/Floating

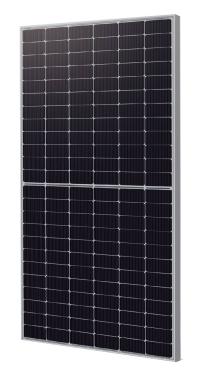

Module GCL Bifacial 72 cells Monocrystalline/N-type/TOPCon
Standard
| Reference | Prod. start | Prod. end |
|---|---|---|
| GCL-NT10R/72GDF 600 | 2024/04 | 2025/04 |
| GCL-NT10R/72GDF 605 | 2024/07 | 2025/07 |
| GCL-NT10R/72GDF 610 | 2024/10 | 2025/10 |
| GCL-NT10R/72GDF 615 | 2025/01 | 2026/01 |
| GCL-NT10R/72GDF 620 | 2026/07 | 2026/07 |
Sorry, no product is currently available for this range.
Documentation
General documents
Warranties
Product 12 years
Performance 30 years
| First year degradation (%) | 1,00 % |
| Annual degradation (%) | 0,40 % |
ECS certificates / Carbon footprint
Request for information on ECS/Carbon Footprint
Request a certificate| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 2382x1134x30 mm |
| Weight (kg) | 34,10 |
| Technology | Monocrystalline/N-type/TOPCon |
| Number of cells | 72 |
| Cell size | 182x192 - M10R |
| Glass type | 2 mm x 2 |
| Rear side | Glass White |
| Frame | Aluminum grey |
| Connectors | MC4 or equivalent |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | Custom (default 0.35 m) |
| Hail resistance | 25mm (IEC 61215) |
| Characteristics | 600 W | 605 W | 610 W | 615 W | 620 W | ||||
|---|---|---|---|---|---|---|---|---|---|
| Yield (%) | 22.21 | 22.40 | 22.58 | 22.77 | 22.95 | ||||
| Electrical Specification (STC) | |||||||||
| Vmp STC (V) | 43.35 | 43.56 | 43.75 | 43.95 | 44.15 | ||||
| Imp STC (A) | 13.84 | 13.89 | 13.95 | 14 | 14.05 | ||||
| Voc STC (V) | 51.6 | 51.75 | 51.9 | 52.05 | 52.2 | ||||
| Isc STC (A) | 14.55 | 14.6 | 14.65 | 14.7 | 14.75 | ||||
| Temperature specifications | |||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | 45 | ||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.29 | ||||||||
| Temperature Coefficient of Isc (%/°C) | 0.045 | ||||||||
| Temperature Coefficient of Voc (%/°C) | -0.25 | ||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 36 |
| Modules per container | 720 |
| Pallets per container | 20 |
| Packaging box length (mm) | 2402 |
| Packaging box width (mm) | 1125 |
| Packaging box height (mm) | 1270 |
| Packaging box weight (kg) | 1188 |
| Modules conditioning | Vertical |
