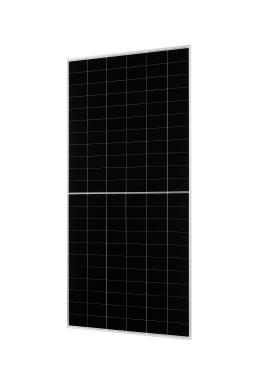

HSM-BD66-GR
Standard
G12R-66P
Use:
Ground-mounted power plants
/Agrivoltaics
/Floating
Module TCL Bifacial 66 cells Monocrystalline/N-type/xBC
| Reference | Prod. start | Prod. end |
|---|---|---|
| HSM-BD66-GR 650 | 2025/10 | 2026/10 |
| HSM-BD66-GR 655 | 2026/01 | 2027/01 |
| HSM-BD66-GR 660 | 2026/07 | 2027/07 |
Documentation
General documents
Warranties
| First year degradation (%) | 1,00 % |
| Annual degradation (%) | 0,40 % |
Certificates
ECS certificates / Carbon footprint
| Method | HSM-BD66-GR 650 | HSM-BD66-GR 655 | HSM-BD66-GR 660 | |
|---|---|---|---|---|
| PPE2 | ? | ? | ? | Request a certificate |
| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 2382x1134x30 mm |
| Weight (kg) | 33,50 |
| Technology | Monocrystalline/N-type/xBC |
| Number of cells | 66 |
| Cell size | 210x182 - G12R |
| Glass type | 2 mm x 2 |
| Rear side | Glass White |
| Frame | Aluminum grey |
| Connectors | MC4 or equivalent |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | 1200mm |
| Characteristics | 650 W | 655 W | 660 W | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Efficiency (%) | 24.06 | 24.25 | 24.43 | ||||||
| Electrical Specification (STC) | |||||||||
| Vmp STC (V) | 42 | 42.1 | 42.2 | ||||||
| Imp STC (A) | 15.48 | 15.56 | 15.65 | ||||||
| Voc STC (V) | 49.3 | 49.4 | 49.5 | ||||||
| Isc STC (A) | 16.62 | 16.69 | 16.76 | ||||||
| Temperature specifications | |||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | 43 | ||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.26 | ||||||||
| Temperature Coefficient of Isc (%/°C) | 0.05 | ||||||||
| Temperature Coefficient of Voc (%/°C) | -0.22 | ||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 36 |
| Modules per container | 720 |
| Pallets per container | 20 |
| Packaging box length (mm) | 2418 |
| Packaging box width (mm) | 1122 |
| Packaging box height (mm) | 1280 |
| Packaging box weight (kg) | 1050 |
TCL/TZE - HUANSHENG PHOTOVOLTAIC (JIANGSU) CO. LTD
View more
TCL Photovoltaic Technology is a subsidiary of the Chinese TCL Technology Group, specializing in green energy solutions. Founded in China, the company is renowned for its innovations in the renewable energy sector and has quickly established itself as a major player in the photovoltaic industry.
With state-of-the-art factories located in China and other strategic regions, TCL Photovoltaic Technology boasts a production capacity of 40 GWp in modules and 25 GWp in solar cells. The company also stands out for its technological innovations, including its shingled modules based on TOPCon technology, achieving a power output of 730 W and an efficiency of 23.2%.
TCL Photovoltaic Technology masters all key stages of photovoltaic module manufacturing, including the production of ingots, wafers, cells, and modules. This vertical integration enables the company to offer a competitive cost structure while ensuring consistent quality at every stage of the production chain.
TCL Photovoltaic Technology is not limited to module manufacturing; the company is also involved in the entire value chain, including the development, management, and optimization of intelligent energy solutions. This positioning allows the company to provide competitive cost structures and comprehensive solutions to its customers.
Additionally, the company actively invests in its own photovoltaic projects while exploring strategic partnerships, such as the planned acquisition of Maxeon Solar Technologies. TCL Photovoltaic Technology aims to become a global leader in renewable energy by leveraging cutting-edge technologies and recognized expertise.
