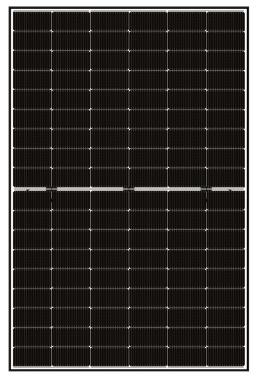

DAS-DH108ND
Transparent
108ND Frame Black
Use:
Carports
/Roofs
/Agrivoltaics
Module DAS Solar Bifacial 108 cells Monocrystalline/N-type/TOPCon
Transparent
Documentation
General documents
Certificates
ECS certificates / Carbon footprint
Request for information on ECS/Carbon Footprint
Request a certificate| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 1800x1134x30 mm |
| Weight (kg) | 21,70 |
| Technology | Monocrystalline/N-type/TOPCon |
| Number of cells | 108 |
| Cell size | 182x183.75 - M10R |
| Glass type | 1.6 mm x 2 |
| Rear side | Glass Transparent |
| Frame | Aluminum black |
| Connectors | MC4 or equivalent |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | Custom (default 0.3 m) |
| Characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield (%) | |||||||||
| Electrical Specification (STC) | |||||||||
| Vmp STC (V) | |||||||||
| Imp STC (A) | |||||||||
| Voc STC (V) | |||||||||
| Isc STC (A) | |||||||||
| Temperature specifications | |||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | 42 | ||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.3 | ||||||||
| Temperature Coefficient of Isc (%/°C) | 0.045 | ||||||||
| Temperature Coefficient of Voc (%/°C) | -0.25 | ||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 36 |
| Modules per container | 936 |
| Pallets per container | 26 |
| Packaging box length (mm) | 1810 |
| Packaging box width (mm) | 1115 |
| Packaging box height (mm) | 821 |
| Packaging box weight (kg) | 1252 |
| Modules conditioning | Vertical |
DAS SOLAR CO., LTD.
View more
DAS SOLAR CO. , LTD, founded in 2018, specializes in R&D, the manufacture of cells and modules, as well as the construction and operation of photovoltaic plants.
The production capacity reaches a total of 60 GW (30GW for cells and 30GW for modules), the manufacturer invests 5% of its turnover in the search for high-efficiency solutions.
Although new to the solar industry, the manufacturer is already a serious challenger of the TOPCon type N market. In 2022, it developed the "TOPCon 3.0" technology to achieve an average conversion efficiency of more than 25.2%.
