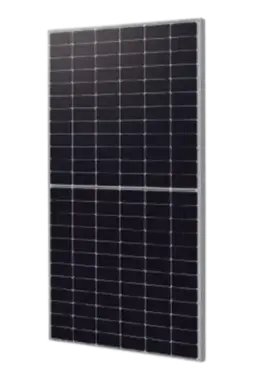

GCL-NT10/72GDF
Standard
Use:
Ground-mounted power plants
/Floating
Module GCL Bifacial 72 cells Monocrystalline/N-type/TOPCon
Standard
| Reference | Prod. start | Prod. end |
|---|---|---|
| GCL-NT10/72GDF-555 | 2021/01 | 2022/01 |
| GCL-NT10/72GDF-560 | 2021/07 | 2022/07 |
| GCL-NT10/72GDF 565 | 2022/01 | 2023/07 |
| GCL-NT10/72GDF 570 | 2023/01 | 2024/01 |
| GCL-NT10/72GDF 575 | 2023/04 | 2024/07 |
| GCL-NT10/72GDF 580 | 2024/01 | 2024/10 |
| GCL-NT10/72GDF 585 | 2025/01 | 2026/04 |
| GCL-NT10/72GDF 590 | 2025/07 | 2026/07 |
| GCL-NT10/72GDF 595 | 2025/06 | 2026/07 |
| GCL-NT10/72GDF 600 | 2026/04 | 2027/01 |
| GCL-NT10/72GDF 605 | 2027/01 | 2027/07 |
Sorry, no product is currently available for this range.
Documentation
General documents
Warranties
Product 12 years
Performance 30 years
| First year degradation (%) | 1,00 % |
| Annual degradation (%) | 0,40 % |
Certificates
ECS certificates / Carbon footprint
| Method | GCL-NT10/72GDF-555 | GCL-NT10/72GDF-560 | GCL-NT10/72GDF 565 | GCL-NT10/72GDF 570 | GCL-NT10/72GDF 575 | GCL-NT10/72GDF 580 | GCL-NT10/72GDF 585 | GCL-NT10/72GDF 590 | GCL-NT10/72GDF 595 | GCL-NT10/72GDF 600 | GCL-NT10/72GDF 605 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PPE2 | ? | ? | ? | ? | ? | ? | ? | ? | ? | ? | ? | Request a certificate |
| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 2278x1134x30 mm |
| Weight (kg) | 31,20 |
| Technology | Monocrystalline/N-type/TOPCon |
| Number of cells | 72 |
| Cell size | 182 - M10 |
| Glass type | 2 mm x 2 |
| Rear side | Glass White |
| Frame | Aluminum grey |
| Connectors | MC4 Original |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | Custom (default 0.28 m) |
| Hail resistance | 35mm (IEC 61215) |
| Characteristics | 555 W | 560 W | 565 W | 570 W | 575 W | 580 W | 585 W | 590 W | 595 W | 600 W | 605 W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield (%) | 21.48 | 21.68 | 21.87 | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 | 23.42 |
| Electrical Specification (STC) | |||||||||||
| Vmp STC (V) | 42.75 | 42.95 | 43.15 | 43.35 | 43.56 | 43.75 | 43.95 | 44.15 | 44.35 | 44.55 | 44.82 |
| Imp STC (A) | 12.98 | 13.04 | 13.09 | 13.15 | 13.2 | 13.26 | 13.31 | 13.37 | 13.42 | 13.47 | 13.5 |
| Voc STC (V) | 51.14 | 51.29 | 51.44 | 51.6 | 51.75 | 51.9 | 52.05 | 52.2 | 52.35 | 52.5 | 52.75 |
| Isc STC (A) | 13.71 | 13.77 | 13.83 | 13.89 | 13.95 | 14.01 | 14.07 | 14.13 | 14.19 | 14.25 | 14.28 |
| Temperature specifications | |||||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | 45 | ||||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.29 | ||||||||||
| Temperature Coefficient of Isc (%/°C) | 0.045 | ||||||||||
| Temperature Coefficient of Voc (%/°C) | -0.25 | ||||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 36 |
| Modules per container | 720 |
| Pallets per container | 20 |
| Packaging box length (mm) | 2320 |
| Packaging box width (mm) | 1135 |
| Packaging box height (mm) | 1270 |
| Packaging box weight (kg) | 1178 |
| Modules conditioning | Vertical |
GCL
View more
GCL is a key player in the solar industry.
It is one of the world's Top 3 polysilicon manufacturers and a leading supplier of wafers and modules.
In 2022, the manufacturer will have a PV module production capacity of 19 GW. This will rise to 30 GW by the end of 2023.
The group is also a power producer with the accumulative installed capacity of GCL-ET by now, in operation and under construction, exceeding 4,000 MW (not including the proposed projects), over 90% of which is new clean energy.
GCL is at the forefront in each of the production stages of PV modules and stand out by its technological advantages. The manufacturer has a vertically integrated photovoltaic industrial chain.
