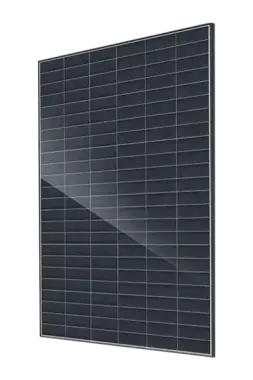

JAM48D50/LR
Standard
Deep Blue 5.0
Use:
Roofs
Module JA Solar 48 cells Monocrystalline/N-type/TOPCon
Standard
| Reference | Prod. start | Prod. end |
|---|---|---|
| JAM48D50-475/LR | 2026/07 | 2027/01 |
| JAM48D50-480/LR | 2026/07 | 2027/07 |
| JAM48D50-485/LR | 2027/01 | 2028/01 |
Documentation
General documents
ECS certificates / Carbon footprint
| Method | JAM48D50-475/LR | JAM48D50-480/LR | JAM48D50-485/LR | |
|---|---|---|---|---|
| PPE2 V2 | ? | ? | ? | Request a certificate |
| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 1762x1134x30 mm |
| Weight (kg) | 24,80 |
| Technology | Monocrystalline/N-type/TOPCon |
| Number of cells | 48 |
| Cell size | 210x182 - G12R |
| Glass type | 2 mm x 2 |
| Rear side | Glass White |
| Frame | Aluminum grey or black |
| Connectors | MC4 or equivalent |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | Custom (default 1.2 m) |
| Characteristics | 475 W | 480 W | 485 W | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield (%) | 23.77 | 24.02 | 24.27 | ||||||
| Electrical Specification (STC) | |||||||||
| Vmp STC (V) | 29.81 | 30.04 | 30.26 | ||||||
| Imp STC (A) | 15.93 | 15.98 | 16.03 | ||||||
| Voc STC (V) | 36.33 | 36.4 | 36.47 | ||||||
| Isc STC (A) | 16.73 | 16.78 | 16.83 | ||||||
| Temperature specifications | |||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | 45 | ||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.26 | ||||||||
| Temperature Coefficient of Isc (%/°C) | 0.041 | ||||||||
| Temperature Coefficient of Voc (%/°C) | -0.22 | ||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 37 |
| Modules per container | 962 |
| Pallets per container | 26 |
| Packaging box length (mm) | 1790 |
| Packaging box width (mm) | 1140 |
| Packaging box height (mm) | 1250 |
| Packaging box weight (kg) | 963 |
| Modules conditioning | Vertical |
JA Solar
View more
Founded in 2005, JA SOLAR is a manufacturer of photovoltaic modules classified "Tier 1" by Bloomberg and in the top 3 manufacturers worldwide. It is also one of three manufacturers rated AAA in the PV TECH bankability ranking.
The manufacturer has a PV module production capacity of more than 100 GW.
Historically, JA Solar has been a cell manufacturing specialist at the heart of module technology. It is naturally that it positions itself as one of the players offering the most reliable products on the market.
Being vertically integrated, it benefits from an optimized cost structure and quality control throughout the production value chain.
