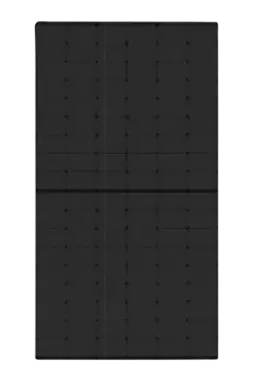

JKMxxxN-54HL4R-B
Full Black
Tiger neo
Use:
Roofs
Module Jinko Solar 54 cells Monocrystalline/N-type/TOPCon
Full Black
| Reference | Prod. start | Prod. end |
|---|---|---|
| JKM430N-54HL4R-B | 2023/04 | 2024/04 |
| JKM435N-54HL4R-B | 2023/10 | 2024/10 |
| JKM440N-54HL4R-B | 2024/01 | 2025/01 |
| JKM445N-54HL4R-B | 2024/10 | 2025/10 |
| JKM450N-54HL4R-B | 2025/04 | 2026/04 |
Documentation
General documents
Warranties
| First year degradation (%) | 1,00 % |
| Annual degradation (%) | 0,40 % |
Certificates
ECS certificates / Carbon footprint
Request for information on ECS/Carbon Footprint
Request a certificate| Characteristics | Value |
|---|---|
| Product category | Module |
| Dimensions (length/ width / height) | 1762x1134x30 mm |
| Weight (kg) | 21,00 |
| Technology | Monocrystalline/N-type/TOPCon |
| Number of cells | 54 |
| Cell size | 182x188 - M10R |
| Glass type | 3.2 mm |
| Rear side | Black Backsheet |
| Frame | Aluminum black |
| Connectors | MC4 or equivalent |
| Junction box | IP68 |
| Numbre of diodes | 3 |
| Maximum Load (Pa) | 2400 / 5400 |
| Standard cable length | Custom (default 0.2 m) |
| Characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield (%) | |||||||||
| Electrical Specification (STC) | |||||||||
| Vmp STC (V) | |||||||||
| Imp STC (A) | |||||||||
| Voc STC (V) | |||||||||
| Isc STC (A) | |||||||||
| Temperature specifications | |||||||||
| Normal Operating Cell Temperature (NOCT °C +/-2°C) | 45 | ||||||||
| Temperature Coefficient of Pmax (%/°C) | -0.29 | ||||||||
| Temperature Coefficient of Isc (%/°C) | 0.045 | ||||||||
| Temperature Coefficient of Voc (%/°C) | -0.25 | ||||||||
| Characteristics | Value |
|---|---|
| Modules per pallet | 36 |
| Modules per container | 936 |
| Pallets per container | 26 |
| Packaging box length (mm) | 1792 |
| Packaging box width (mm) | 1120 |
| Packaging box height (mm) | 1249 |
| Packaging box weight (kg) | 816 |
| Modules conditioning | Vertical |
JinkoSolar Holding Co., Ltd.
View more
Founded in 2006, JinkoSolar is among the global leaders in the solar industry and a "Tier 1" company in the Bloomberg ranking.
Since 2010, the photovoltaic module manufacturer and energy storage systems integrator has been listed on the New York Stock Exchange.
The company has 10 production sites located in China, Malaysia, and the United States, and boasts an annual capacity of 120 GW for wafers, 95 GW for cells, and 130 GW for modules, primarily of type-N.
Since its creation, Jinko Solar has delivered to over 4000 clients in more than 200 countries.
With full control over its production chain (ingots, wafers, cells, modules), JinkoSolar is a vertically integrated manufacturer. The company holds financial stability and operational efficiency that are among the best in the market.
