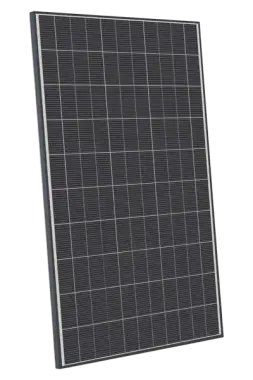

TARKA 110 VSBP CRISTAL Transparent

Use: Carports /Roofs

Module VOLTEC Bifacial 55 cells Monocrystalline/N-type/TOPCon

1868×1070×35 mm
435 to 460 Watts
Bifacial
Glass / Backsheet
Monocrystalline/N-type/TOPCon
Mounting system:
ETN ATEx ATec
Carbon footprint :
Information available to logged in users

Reference	Prod. start	Prod. end
TARKA 110 VSBP CRISTAL 435	2026/07	2026/07
TARKA 110 VSBP CRISTAL 440	2026/07	2026/07
TARKA 110 VSBP CRISTAL 445	2026/07	2026/07
TARKA 110 VSBP CRISTAL 450	2025/10	2027/01
TARKA 110 VSBP CRISTAL 455	2026/10	2028/01
TARKA 110 VSBP CRISTAL 460	2026/07	2026/07

Sorry, no product is currently available for this range.

General documents

Datasheet (v1.1)

.PAN file (Manufacturer 2024)

Installation Manual (F)

Compare the performance of your .PAN files

Warranties

Product 30 years

Performance 30 years

First year degradation (%)	1,00 %
Annual degradation (%)	0,40 %

Warranty (20251201)

Certificates

IEC 61215/61730 (2025-04-29_2021)

IEC 61701 Salt Mist (2025-04-29)

IEC 62716 Ammonia (2025-04-29_2021)

ECS certificates / Carbon footprint

Method	TARKA 110 VSBP CRISTAL 435	TARKA 110 VSBP CRISTAL 440	TARKA 110 VSBP CRISTAL 445	TARKA 110 VSBP CRISTAL 450	TARKA 110 VSBP CRISTAL 455	TARKA 110 VSBP CRISTAL 460
PPE2 V2	?	?	?	?	?	?	Request a certificate

Learn more about ECS methods

Characteristics	Value
Product category	Module
Dimensions (length/ width / height)	1868x1070x35 mm
Weight (kg)	21,00
Technology	Monocrystalline/N-type/TOPCon
Number of cells	55
Cell size	182x183.75 - M10R
Glass type	3.2 mm
Rear side	Transparent Backsheet
Frame	Aluminum black
Connectors	MC4 Original
Junction box	IP68
Numbre of diodes	3
Maximum Load (Pa)	2000 / 4000
Standard cable length	1600mm
Hail resistance	40mm (RG4)

Characteristics	435 W	440 W	445 W	450 W	455 W	460 W
Yield (%)	21.76	22.01	22.26	22.51	22.76	23.01
Electrical Specification (STC)
Vmp STC (V)	33.45	33.65	33.84	34.04	34.23	34.42
Imp STC (A)	13.01	13.08	13.15	13.22	13.29	13.36
Voc STC (V)	39.9	40.11	40.32	40.53	40.74	40.95
Isc STC (A)	13.56	13.62	13.69	13.75	13.81	13.87
Temperature specifications
Normal Operating Cell Temperature (NOCT °C +/-2°C)	45
Temperature Coefficient of Pmax (%/°C)	-0.275
Temperature Coefficient of Isc (%/°C)	0.047
Temperature Coefficient of Voc (%/°C)	-0.228

Characteristics	Value
Modules per pallet	32
Modules per container	896
Pallets per container	28
Packaging box length (mm)	1890
Packaging box width (mm)	1090
Packaging box height (mm)	1272
Packaging box weight (kg)	712
Modules conditioning	Horizontal
