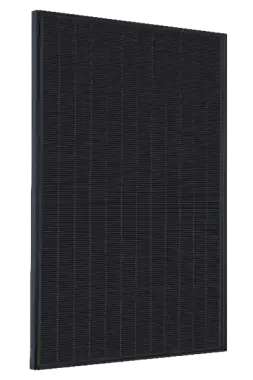

TARKA 120 VSMP BASALTE Full Black

Use: Carports /Roofs

1868×1170×35 mm
500 Watts
Monofacial
Glass / Backsheet
Monocrystalline/N-type/TOPCon
Mounting system:
ETN ATec
Carbon footprint :
Information available to logged in users

Reference	Prod. start	Prod. end
TARKA 120 VSMP BASALTE 500	2025/10	2028/01

Add to quote View similar products

General documents

Datasheet (v1.1)

.PAN file (Manufacturer 2024)

Installation Manual (2025/03/04)

Compare the performance of your .PAN files

Warranties

Product 30 years

Performance 30 years

First year degradation (%)	1,00 %
Annual degradation (%)	0,40 %

Warranty (20251201)

Certificates

IEC 61215/61730 (2025-04-29_2021)

IEC 61701 Salt Mist (2025-04-29)

IEC 62716 Ammonia (2025-04-29_2021)

ECS certificates / Carbon footprint

Method	TARKA 120 VSMP BASALTE 500
PPE2 V2	?	Request a certificate
PPE2	?	Request a certificate

Learn more about ECS methods

Characteristics	Value
Product category	Module
Dimensions (length/ width / height)	1868x1170x35 mm
Weight (kg)	22,80
Technology	Monocrystalline/N-type/TOPCon
Number of cells	60
Cell size	182x183.75 - M10R
Glass type	3.2 mm
Rear side	Black Backsheet
Frame	Aluminum black
Connectors	MC4 or equivalent
Junction box	IP68
Numbre of diodes	3
Maximum Load (Pa)	2400 / 5400
Standard cable length	1200mm

Characteristics	500 W
Yield (%)	22.88
Electrical Specification (STC)
Vmp STC (V)	37.29
Imp STC (A)	13.41
Voc STC (V)	44.39
Isc STC (A)	13.93
Temperature specifications
Normal Operating Cell Temperature (NOCT °C +/-2°C)	45
Temperature Coefficient of Pmax (%/°C)	-0.275
Temperature Coefficient of Isc (%/°C)	0.047
Temperature Coefficient of Voc (%/°C)	-0.228

Characteristics	Value
Modules per pallet	32
Modules per container	896
Pallets per container	28
Packaging box length (mm)	1890
Packaging box width (mm)	1190
Packaging box height (mm)	1272
Packaging box weight (kg)	771
Modules conditioning	Horizontal

VOLTEC View more

Founded in 2009, Voltec Solar is a French manufacturer of photovoltaic panels based in Dinsheim-sur-Bruche, in Alsace.

The company now employs more than one hundred people and operates a high-tech production line capable of producing 3,000 panels per day.

Voltec Solar stands out thanks to a manufacturing approach that promotes a reduced carbon footprint. The modules combine high efficiency, technological innovation, and robustness.

Voltec Solar embodies a pragmatic and responsible vision of the energy transition: French quality, reduced environmental impact, material traceability, and local production. A credible alternative to the international standardization of the photovoltaic sector.
