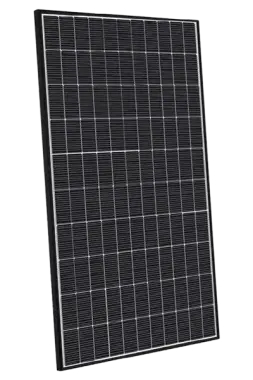

TARKA L 110R VSMP Diamant Standard

Use: Roofs

1868×1220×35 mm
510 Watts
Monofacial
Glass / Backsheet
Monocrystalline/N-type/TOPCon
Mounting system:
ETN ATEx ATec
Carbon footprint :
Information available to logged in users

Reference	Prod. start	Prod. end
TARKA L 110R VSMP Diamant 510	2026/10	2027/10

Add to quote View similar products

General documents

Datasheet (v1)

Compare the performance of your .PAN files

Certificates

IEC 61215/61730 (20260319)

IEC 61701 Salt Mist (20260319)

IEC 62716 Ammonia (20260319)

ECS certificates / Carbon footprint

Request for information on ECS/Carbon Footprint

Request a certificate

Learn more about ECS methods

Characteristics	Value
Product category	Module
Dimensions (length/ width / height)	1868x1220x35 mm
Weight (kg)	23,80
Technology	Monocrystalline/N-type/TOPCon
Number of cells	55
Cell size	210x182 - G12R
Glass type	3.2 mm
Rear side	White Backsheet
Frame	Aluminum black
Connectors	MC4 Original
Junction box	IP68
Numbre of diodes	3
Maximum Load (Pa)	2000 / 5400
Standard cable length	1600mm
Hail resistance	50mm (RG5)

Characteristics	510 W
Yield (%)	22.38
Electrical Specification (STC)
Vmp STC (V)	34.25
Imp STC (A)	14.89
Voc STC (V)	40.8
Isc STC (A)	15.68
Temperature specifications
Normal Operating Cell Temperature (NOCT °C +/-2°C)	45
Temperature Coefficient of Pmax (%/°C)	-0.26
Temperature Coefficient of Isc (%/°C)	0.046
Temperature Coefficient of Voc (%/°C)	-0.24

Characteristics	Value
Modules per pallet	32
Modules per container	896
Pallets per container	28
Packaging box length (mm)	1890
Packaging box width (mm)	1240
Packaging box height (mm)	1272
Packaging box weight (kg)	800
Modules conditioning	Horizontal

VOLTEC View more

Founded in 2009, Voltec Solar is a French manufacturer of photovoltaic panels based in Dinsheim-sur-Bruche, in Alsace.

The company now employs more than one hundred people and operates a high-tech production line capable of producing 3,000 panels per day.

Voltec Solar stands out thanks to a manufacturing approach that promotes a reduced carbon footprint. The modules combine high efficiency, technological innovation, and robustness.

Voltec Solar embodies a pragmatic and responsible vision of the energy transition: French quality, reduced environmental impact, material traceability, and local production. A credible alternative to the international standardization of the photovoltaic sector.
